Freightliner Cascadia Cab Extender Bracket Kit, Lower Mount Pair

The 22-73952-000BP and 22-74370-000BP are the two lower cab extender brackets on the Freightliner Cascadia. They mount on the same lower cab extender assembly, so when one works its nutsert loose the other is already carrying the same vibration. This kit replaces both at once, eliminating the need for a second teardown.

The OEM brackets are 40% glass fiber reinforced polypropylene. The factory fit relaxes under sustained road vibration, driving the M6 nutsert against the thin fiberglass of the sleeper wall until the mounting hole enlarges and the fastener loses its grip. The cab extender panel then shifts and resonates, and the aerodynamic seal between cab and trailer opens.

Both replacements in this kit correct that failure at the mounting interface. A thickened mating face on each draws its joint tight under torque and closes out the play that invites vibration. Both are rebuilt in carbon fiber reinforced plastic for strength and fatigue resistance beyond the original polypropylene. Direct bolt on replacement using factory mounting points, no drilling or modifications required.

A cab extender that has worked loose is not a cosmetic problem. Published aerodynamic testing places roughly 1% of fuel economy on every 10 inches of tractor trailer gap in highway service, and above approximately 30 inches each additional 10 inches adds about 2% drag. Gap fairings as a system account for roughly 7% drag reduction at 55 mph. A loose panel reopens that gap, and the loss is measured in fuel.

WHAT’S INCLUDED

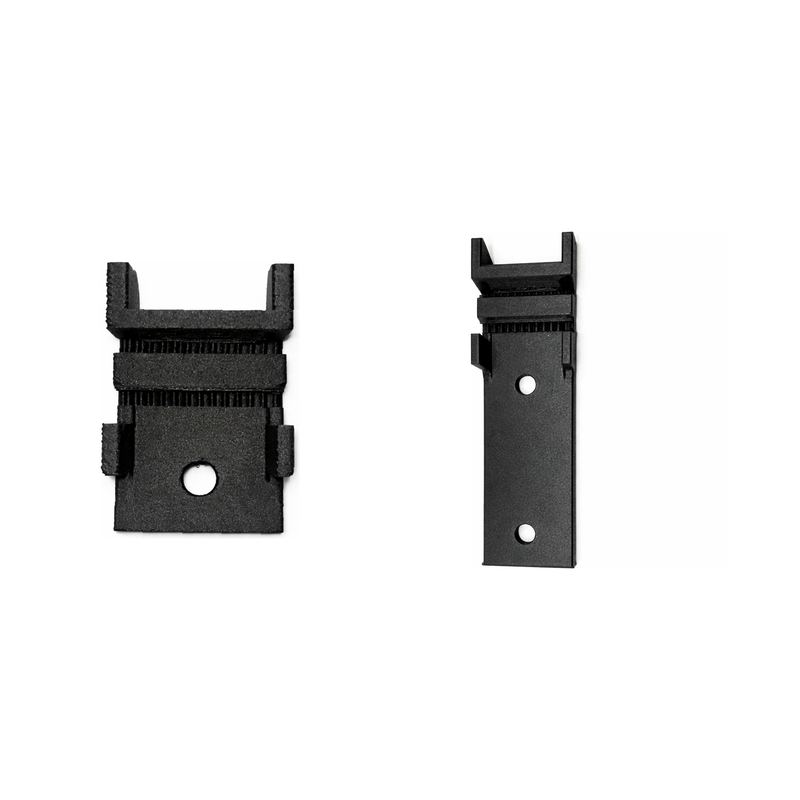

1x 22-73952-000BP, short cab extender bracket, 2 3/8 in
1x 22-74370-000BP, long cab extender attachment arm, 4 5/8 in

The two differ by roughly double in length and are not interchangeable. Each is also sold individually as the short bracket and the long arm.
